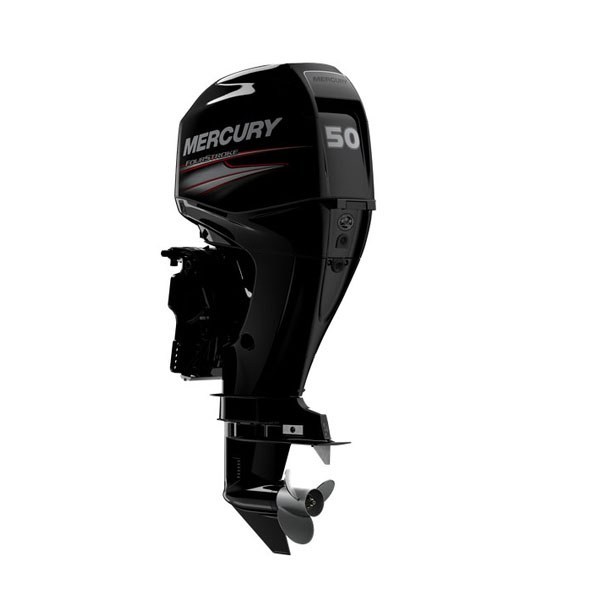

Mercury Marine 50ELHPT Command Thrust FourStroke Big Tiller Outboard Motor

Held to a Higher Standard.
There are plenty of good reasons these outboards rule the water. Start with no-worry reliability. More low-end torque for excellent acceleration. Increased fuel economy and outstanding overall performance. Enhanced fuel injection (EFI models) for boosted efficiency. A robust electrical system with a high-output alternator to keep batteries charged and fishing electronics humming. They have everything you need, and nothing you don’t.
Mercury Marine 50ELHPT Command Thrust FourStroke Big Tiller Outboard Motor
General Information
Manufacturer
Mercury Marine
Model
50ELHPT Command Thrust FourStroke Big Tiller
Model Code
1F5145TLZ
Color
Phantom Black
Electrical
Alternator
18 A, 226 W
Engine
Engine Type
Inline 4
Ignition
ECM 70
Starting
Electric (turn-key)
Exhaust
Through prop
Measurements
Power
50 Horsepower
Displacement
995 Cubic Centimeter
Bore x Stroke
2.56 x 2.95 in. (65 x 75 mm)
Shaft Length
20 Inches
Dry Weight
247 Pounds
Operational
Steering
Tiller
Fuel Type
Unleaded
Full Throttle RPM Range
5,000 – 6,000
Fuel Induction
2-valves per cylinder, single overhead cam (SOHC)
Electronic Fuel Injection (EFI)
Lubrication
Wet sump
Cooling
Water-cooled with thermostat
Gear Ratio
2.33:1
Gear Shift
F-N-R
Gearcase options – Standard
Trim System
Power trim
Shallow trim range – 20°
Instrumentation
SmartCraft Engine Guardian
Mercury Marine 50ELHPT Command Thrust FourStroke Big Tiller Outboard Motor
In The Box
Fuel Tank gallon
Quick Connect Fuel Line
Mercury 3-Year International Warranty
Mercury Aluminum Prop
Mercury Oils
Mercury Owner’s Manual & Tool Kit
